AutoLöc's Pro Series Automatic Remote Control Bolt On Power Tonneau Cover Kit with Programmable Motor Control Module makes opening and closing your tonneau cover quick and easy. Control your tonneau cover up and down with the simple push of a button. This is a Single Motor Kit. Heavy Duty 2 Motor Kits also available. See AutoLöc SKU: 9844

INCLUDES:
- 1 x Heavy duty 200 lb 8” Stroke Linear Actuator
- 1 x Linear Actuator Motor Mounting Install Post Spacer Set
- 1 x 8 Channel Keyless Entry System with 2 Key Fobs & Bluetooth App
- 1 x Motor Control Module with 8 Presets
- 1 x Up/Down Rocker Switch with Arrows

LINEAR ACTUATOR FEATURES:
- Fully Adjustable
- 200 lb Lift Capacity
- 8 Inch Travel/Stroke
- Heavy Duty High
-Torque Screw Drive Motor
- Built In Limit Switch

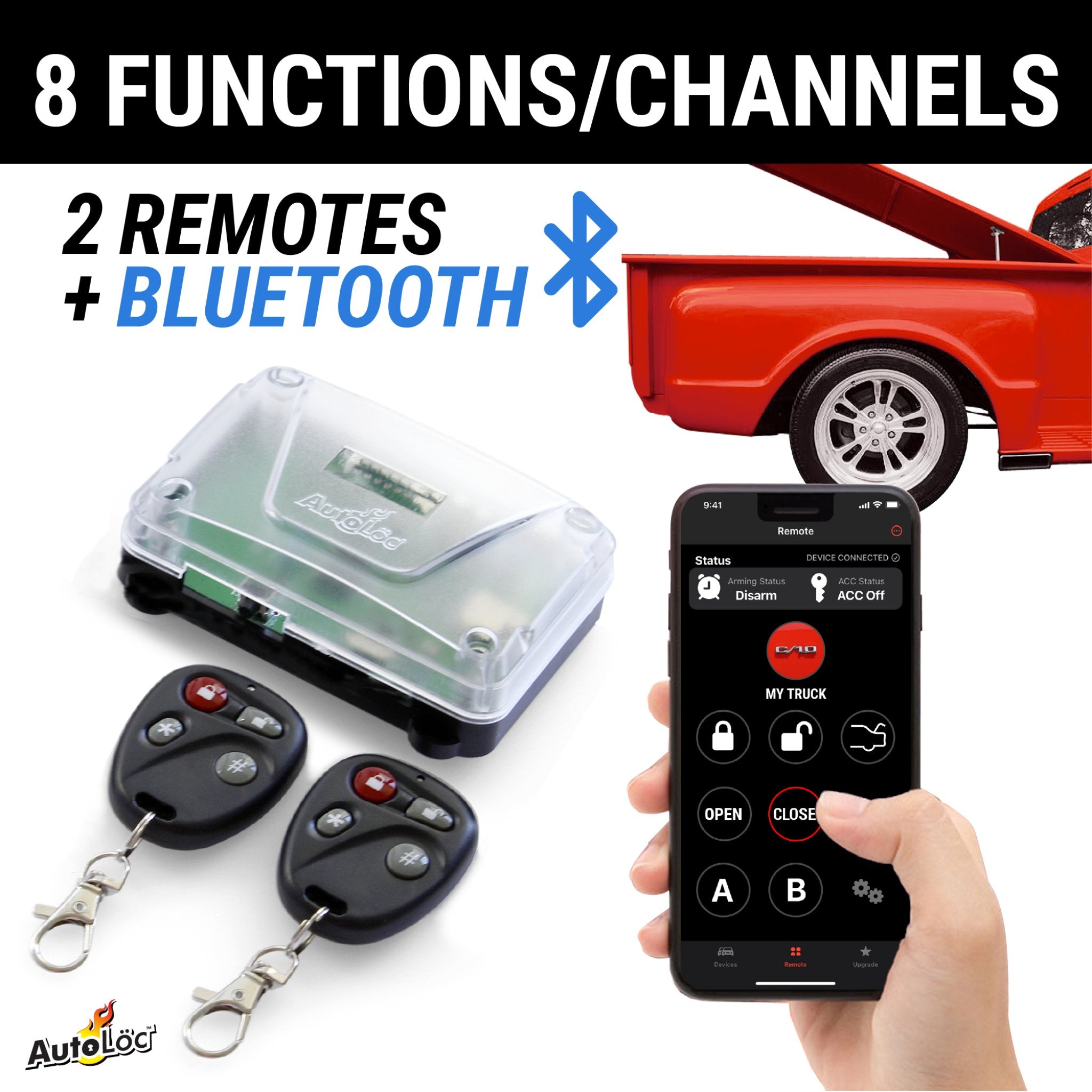

REMOTE CONTROL:
AutoLöc's 8 Channel/Function Remote Keyless Entry System can be used to open and close your tonneau cover, and much more! Includes AutoLöc's Bluetooth Smartphone App.

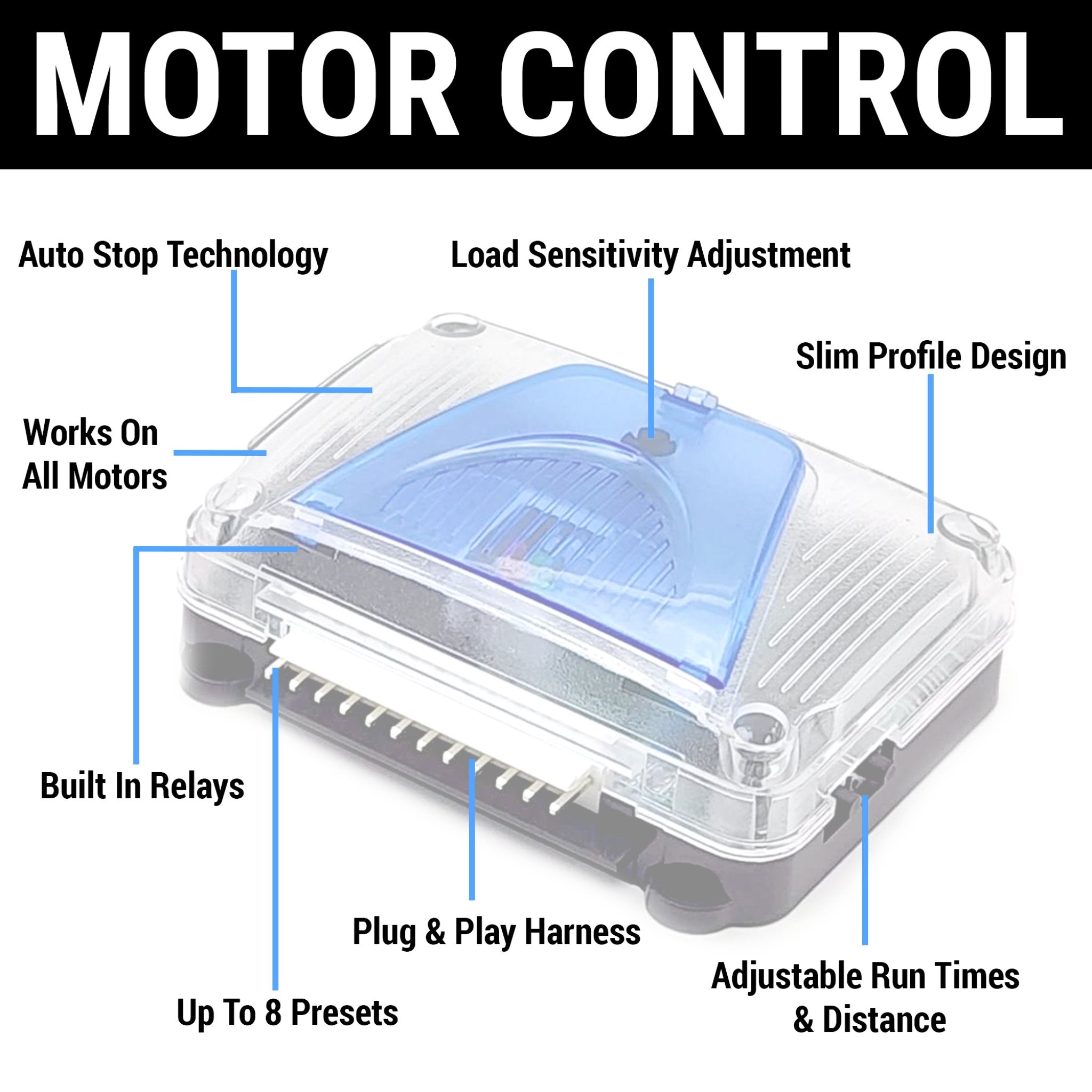

MOTOR CONTROL MODULE:
AutoLöc linear actuators are made with built-in limit switches. When combined with AutoLöc motor control modules, this allows you to program custom run times and push/pull settings. This kit includes one 8 Preset Motor Control Module.

Autolöc’s FREE Phone App* includes 3 Channels. Up to 8 Channels available through the App for an additional fee. Remote key fob or Phone App can be used for a variety of functions, such as;

- Lock/Unlock Doors
- Pop Hood, Trunk, Hatch
- Windows Up/Down
- Start/Stop Engine
- Tonneau Cover Up/Down
- and More!

* Additional functions may require additional parts. Subscription Fee Required to Program Time Settings on Phone App.

Note: Vehicle must have existing power door lock/window system in order to use remotes/phone app for keyless entry. AutoLöc Power Door Lock and Central Locking Systems available. SOLD SEPARATELY.

***PRO TIP*** The stroke is adjustable. i.e. Setting the start/stop points on a 8" motor can be limited to 4" by setting these points. They are located below a cap on the bottom. (See Fully Adjustable Image).

* Includes; Detailed Instructions, Free Live USA Technical Support, and a Limited Lifetime Warranty.

---------------------- :: Linear Actuator
# of Actuators :: One Unit
Max Weight :: 200lbs
Motor :: Heavy Duty Torque
Method :: Screw Drive
Adjustable :: Yes
Limiter :: Built In Switch
Travel/Stroke :: 8"

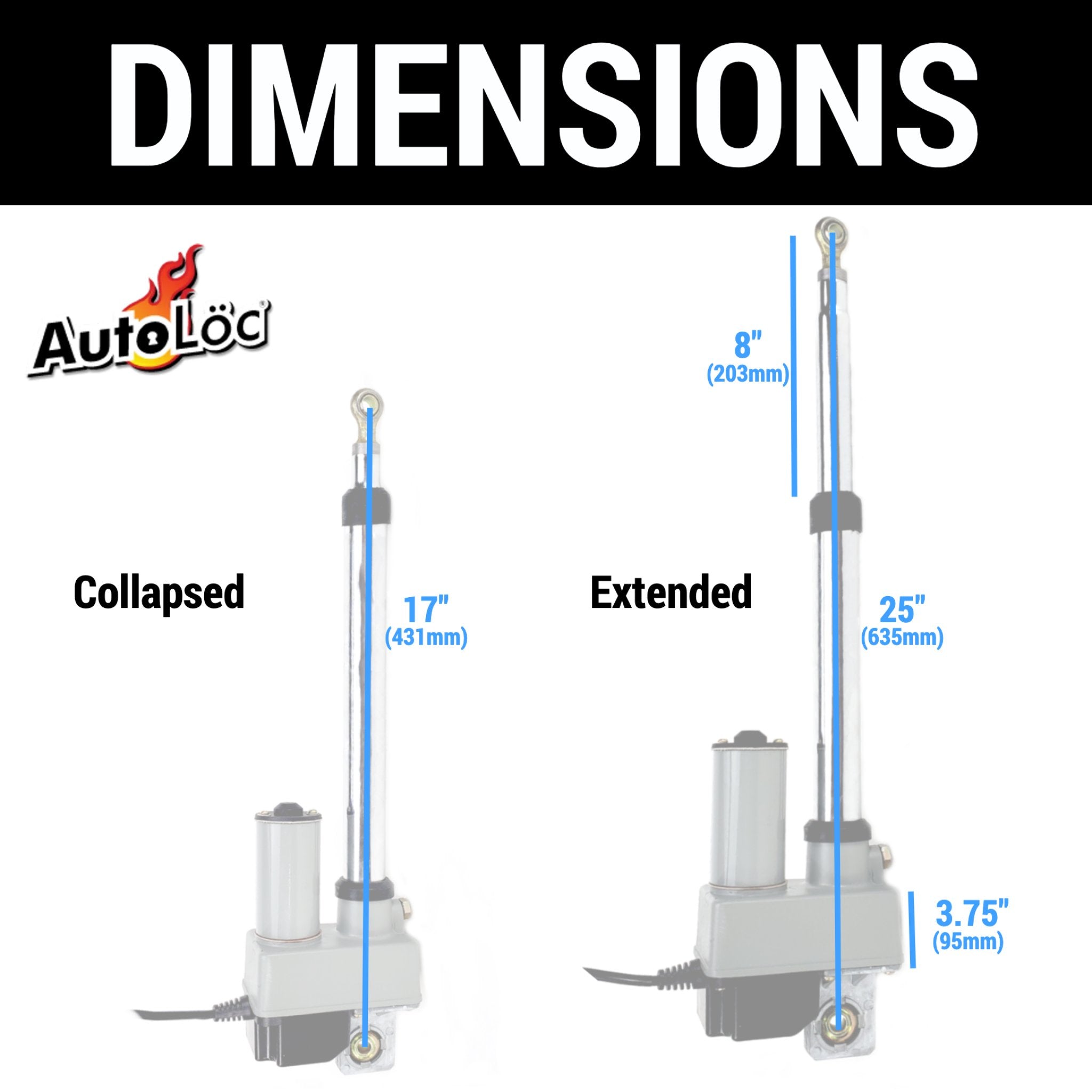

Collapsed :: Length 17"
Extended :: Length 25"
Base :: Length 3 3/4"
Gear Ratio :: 10:1 Quick Operation
Assembly :: Sealed & Lubricated
Material :: Steel
Connect Ends :: Bearing Rods
---------------------- :: Keyless Entry
Functions :: 8
Bluetooth App :: Yes
# of Remotes :: 2
Voltage :: 12V
Start Disable :: Yes
Harness :: Plug-N-Play
Code Rolling :: Yes
Lock/Unlock :: Yes
Fuse Protection :: Yes
Long Range :: Yes
Universal :: Yes
---------------------- :: Motor Controler (one)
Presets :: 8
Programable :: Yes
Wiring :: Plug-N-Play
Voltage :: 12V
Safety :: Built In Auto Stop
Tuning :: Sensitivity Adjustment
Length :: 3.612"
Width :: 3"
Height :: 1.25"
Harness Length :: 6.5'
Relays :: Built In
---------------------- :: Other
Switches :: One 3 Way Included
Mounting :: 1 Pair Post Spacers
Instructions :: Detailed Instructions
Warranty :: Limited Lifetime Warranty

	Item ID	SKU
	AUTTONNOS3	9843
